6306UE - Security & Sound, #18-8c, BC, CMP

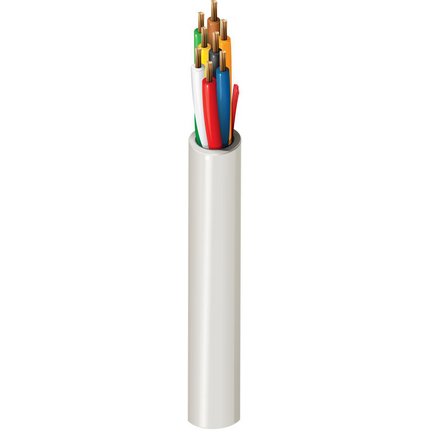

Security & Sound Cable, Plenum-CMP 8-18 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Pairs
Pair(s)187x26BC - Bare Copper8
Total Number of Pairs: 8
Insulation
ElementMaterialMaterial Trade NameNominal Wall Thickness
Pair(s)PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.008 in
Color Chart
Color
Black
Red
White
Green
Brown
Blue
Orange
Yellow
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.235 in0.015 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
34 pF/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 3.5 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 57.3 lbs/1000ft
Max Recommended Pulling Tension: 179.2 lbs
Min Bend Radius/Minor Axis: 2.375 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Y

Part Number

Non-Plenum Number: 5306UE
Variants
Item #ColorUPC
6306UE 8771000Natural612825175568
6306UE 877500Natural612825175575
Footnote: C - CRATE REEL PUT-UP.
