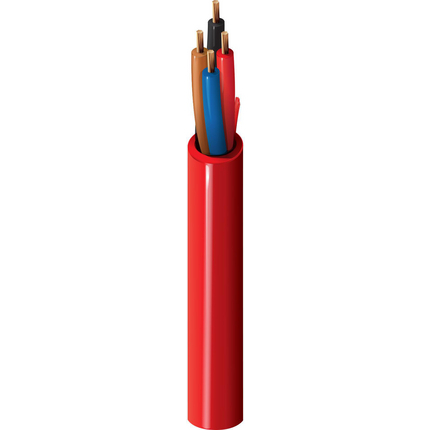

(4)Fire Alarm Cable, Plenum-FPLP, 4-18 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord
| Suitable Applications: | Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification |
| AWG | Stranding | Material | No. of Conductors |
|---|---|---|---|
| 18 | 7x26 | BC - Bare Copper | 4 |
| Conductor Count: | 4 |
| Material | Material Trade Name | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.009 in |
| Number | Color |
|---|---|
| 1 | Black |
| 2 | Red |
| 3 | Brown |
| 4 | Blue |
| Material |
|---|
| No Shield |
| Material | Material Trade Name | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|---|
| PVC - Polyvinyl Chloride | Flamarrest® | 0.185 in | 0.015 in | Yes |
| Twists |
|---|
| 4 twist/ft |
| Nominal Conductor DCR |
|---|
| 6.5 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor |
|---|
| 28.25 pF/ft |
| Max. Recommended Current [A] |
|---|
| 6.4 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Operating Temperature Range: | 0°C To +75°C |
| Bulk Cable Weight: | 30 lbs/1000ft |
| Max. Pull Tension: | 89.5 lbs |
| Min. Bend Radius/Minor Axis: | 1.875 in |
| NEC Articles: | Article 760 |
| NEC/(UL) Compliance: | FPLP |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| MII Order #39 (China RoHS): | Yes |
| UL Flammability: | NFPA 262 Plenum Flame Test (UL910) |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | Yes |
| Non-Plenum Number: | 5302UL |
| Item # | Color | UPC |
|---|---|---|
| 6302UL 002U1000 | Red | 612825175421 |
| Update and Revision: | Revision Number: 0.167 Revision Date: 05-05-2023 |
