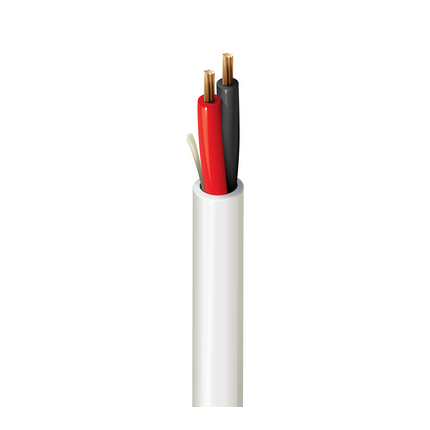

6300UE - Security & Sound, 2 Conductor 18 AWG BC, Plenum


Security & Commercial Audio Cable, 2 Conductor 18 AWG stranded (7x26) bare copper conductors with Flamarrest® insulation, Plenum, Flamarrest® jacket with ripcord.

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)187x26BC - Bare Copper2
Conductor Count: 2
Insulation
ElementMaterialMaterial Trade NameNominal Wall Thickness
Conductor(s)PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.008 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.154 in0.015 inYes

Construction and Dimensions

Cabling
Twists
3.4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
34 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 5 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 16 lbs/1000ft
Max Recommended Pulling Tension: 45 lbs
Min Bend Radius/Minor Axis: 1.55 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5300UE
Variants
Item #ColorPutup TypeLengthUPC
6300UE 010C100BlackCoil100 ft612825174967
6300UE 010U250BlackUnReel250 ft612825174981
6300UE 010U500BlackUnReel500 ft612825421795
6300UE 010Z500BlackReelTuff Box500 ft612825175018
6300UE 0101000BlackReel1,000 ft612825175001
6300UE 010U1000BlackUnReel1,000 ft612825174974
6300UE 010Z1000BlackReelTuff Box1,000 ft612825435372
6300UE 0105000BlackReel5,000 ft612825174950
6300UE D151000BlueReel1,000 ft612825421719
6300UE D15Z1000BlueReelTuff Box1,000 ft612825175063
6300UE 008U500GrayUnReel500 ft612825421771
6300UE 0081000GrayReel1,000 ft612825174882
6300UE 008U1000GrayUnReel1,000 ft612825174899
6300UE 008Z1000GrayReelTuff Box1,000 ft612825350514
6300UE 005Z1000GreenReelTuff Box1,000 ft612825174875
6300UE 0051000Green, DarkReel1,000 ft612825421757
6300UE 3371000Green, LightReel1,000 ft612825340225
6300UE 877500NaturalReel500 ft612825340218
6300UE 877U500NaturalUnReel500 ft612825421818
6300UE 8771000NaturalReel1,000 ft612825175049
6300UE 877U1000NaturalUnReel1,000 ft612825175032
6300UE 877Z1000NaturalReelTuff Box1,000 ft612825350477
6300UE 0031000OrangeReel1,000 ft612825421733
6300UE 003Z1000OrangeReelTuff Box1,000 ft612825174868
6300UE 012U1000PinkUnReel1,000 ft612825421801
6300UE 012Z1000PinkReelTuff Box1,000 ft612825175025
6300UE 0021000RedReel1,000 ft612825421726
6300UE 002Z1000RedReelTuff Box1,000 ft612825350491
6300UE 0071000VioletReel1,000 ft612825421764
6300UE 007Z1000VioletReelTuff Box1,000 ft612825174905
6300UE 009C100WhiteCoil100 ft612825174929
6300UE 009U250WhiteUnReel250 ft612825174943
6300UE 009U500WhiteUnReel500 ft612825421788
6300UE 009Z500WhiteReelTuff Box500 ft612825174998
6300UE 009U1000WhiteUnReel1,000 ft612825174936
6300UE 0091000WhiteReel1,000 ft612825174912
6300UE 009Z1000WhiteReelTuff Box1,000 ft612825445357
6300UE 0041000YellowReel1,000 ft612825174851
6300UE 004U1000YellowUnReel1,000 ft612825421740
6300UE 004Z1000YellowReelTuff Box1,000 ft612825350507
