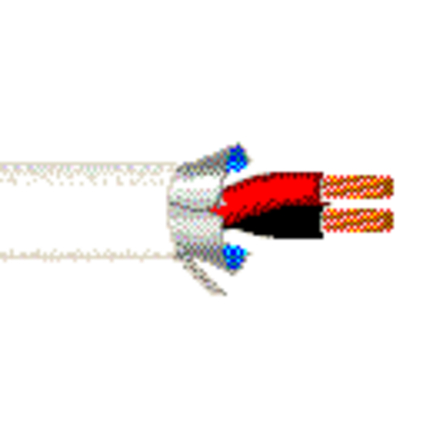

6300FC - Security & Sound, 2 Conductor 18 AWG BC, Shielded, Plenum


Security, Pro Audio & Intercom Cable, 2 Conductor 18 AWG stranded (7x26) bare copper conductors with FEP insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.

Product Overview

Environmental Space: Indoor - Plenum
Suitable Applications: Pro Audio, Intercom/PA Systems, Security Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
187x26BC - Bare Copper2
Conductor Count: 2
Conductor Size: 18 AWG
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.006 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper207x28 mm
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.155 in0.0165 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
6.5 Ohm/1000ft7.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
57 pF/ft102.6 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Impedance
Nominal Characteristic Impedance
29 Ohm
Delay
Nominal DelayNominal Velocity of Propagation (VP) [%]
1.47 ns/ft62 %
Current
Max. Recommended Current [A]
5 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 19.5 lbs/1000ft
Max Recommended Pulling Tension: 57 lbs
Min Bend Radius/Minor Axis: 1.6 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPCLengthFootnote
6300FC 8771000Natural6128251746601,000 ftC
6300FC 877U1000Natural6128253505691,000 ft
Footnote: C - CRATE REEL PUT-UP.
Date: 2005-04-01
