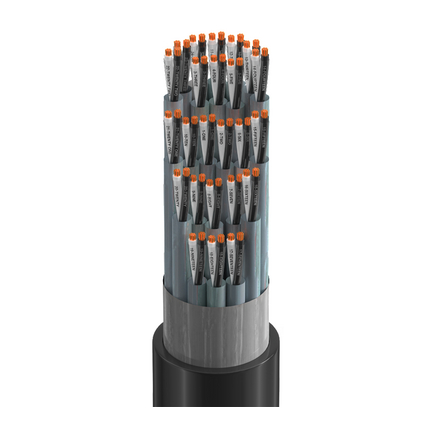

62P1624 - Inst PVC/PVC, 24 Pr #16 Str BC, PVC-NYL Ins E1, IS/OS, Blk PVC Jkt, TC-ER NPLF 90C Dry 75C Wet

UL Instrumentation, 24 Pair 16AWG (7x24) Bare Copper, PVC-NYL Insulation E1 Color Code, Individual & Overall Beldfoil® Shield, Black PVC Outer Jacket, TC-ER NPLF 90C Dry 75C Wet SUN RES DIR BUR

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
167x24BC - Bare Copper24
20TC - Tinned Copper
Conductor Count: 48
Insulation
MaterialNominal Diameter
PVC/Nylon - Polyvinyl Chloride + Nylon0.101 in
Color Chart
NumberColor
PairICEA S-73-732 Table E1 (Pairs: Black & White and numbered)
Inner Shield Material
TypeMaterialMaterial Trade NameDrainwire MaterialDrainwire DiameterDrainwire AWG
TapeBi-Laminate (Alum+Poly)Beldfoil®TC - Tinned Copper0.0363 mm20
Outer Shield Material
TypeMaterialMaterial Trade Name
TapeBi-Laminate (Alum+Poly)Beldfoil®
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessSeparator Material
PVC - Polyvinyl Chloride1.244 in.084 inBarrier Tape

Electrical Characteristics

Current
Max. Recommended Current [A]
6.3 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
150 V RMS (Type NPLF)

Temperature Range

Installation Temp Range: -25°C To +90°C
Operating Temp Range: -40°C to +90°C

Mechanical Characteristics

Max. Pull Tension: 2016 lbs
Min Bend Radius/Minor Axis: 14 in

Standards

NEC/(UL) Compliance: TC-ER
IEEE Compliance: 1202

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes

Suitability

Suitability - Burial: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
IEEE Flammability: 1202
UL voltage rating: 600 V RMS (Type TC)

Part Number

Variants
Item #Putup TypeUPC
62P1624 0102500Reel
62P1624 0105000Reel612825359555

History

Update and Revision: Revision Number: 0.30 Revision Date: 10-20-2020
No accessories are available for this product
