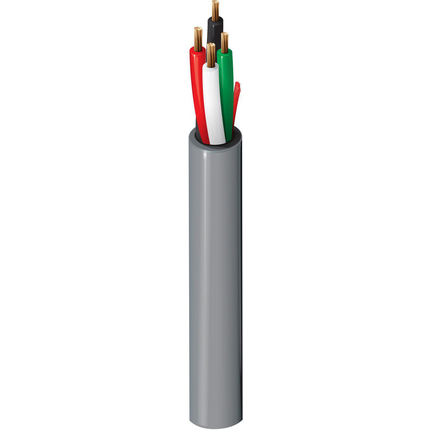

6202UE - Security & Sound, #16-4c, BC, CMP


Security & Sound Cable, Plenum-CMP 4-16 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)1619x29BC - Bare Copper4
Conductor Count: 4
Insulation
ElementMaterialMaterial Trade NameNominal Wall Thickness
Conductor(s)PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.008 in
Color Chart
Color
Black
Red
White
Green
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.206 in0.015 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
3.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
36.5 pF/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 5 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 44.8 lbs/1000ft
Max Recommended Pulling Tension: 117 lbs
Min Bend Radius/Minor Axis: 2 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Y

Part Number

Non-Plenum Number: 5202UE
Variants
Item #ColorUPC
6202UE 8771000Natural612825340157
6202UE 877500Natural612825340164
6202UE 877U1000Natural612825174257
Footnote: C - CRATE REEL PUT-UP.
