6202FE - Security & Sound, 4 Conductor 16 AWG, BC, O/A Foil, CMP

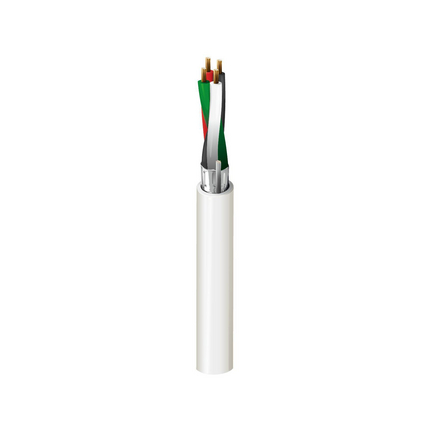

Security & Commercial Audio Cable, Plenum-CMP, 4-16 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)1619x29BC - Bare Copper4
Conductor Count: 4
Insulation
ElementMaterialMaterial Trade NameNominal Wall Thickness
Conductor(s)PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.009 in
Color Chart
NumberColor
1Black
2Red
3White
4Green
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper247x32
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.215 in0.015 inYes

Construction and Dimensions

Cabling
Twists
4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
4 Ohm/1000ft14.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
45 pF/ft81 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
ElementMax. Recommended Current [A]
10C Temperature Rise5 Amps per conductor @ 25°C ambient
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 52 lbs/1000ft
Max Recommended Pulling Tension: 146.3 lbs
Min Bend Radius/Minor Axis: 2.2 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5202FE
Variants
Item #ColorPutup TypeLengthUPC
6202FE 8771000NaturalReel1,000 ft612825428954
6202FE 877Z1000NaturalReelTuff Box1,000 ft612825174271
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.286 Revision Date: 05-11-2020
Date: 2005-04-01
