6201UE - Speaker & Control

Product Hierarchy

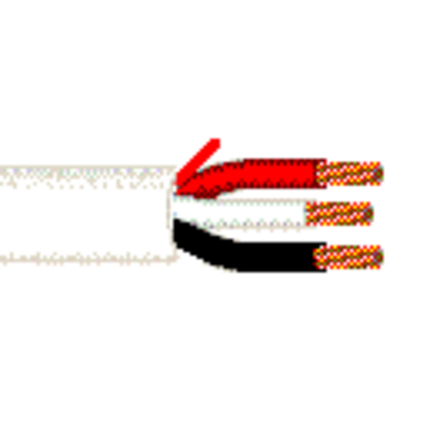

Security & Commercial Audio Cable, 3 Conductor 16 AWG stranded (19x29) bare copper conductors with Flamarrest® insulation, Plenum, Flamarrest® jacket with ripcord.

Compare

Suitable Applications:	Intercom/PA Systems, Sound/Audio Systems

Construction Details

Conductor

Element	Number of Element	Size	Stranding	Material
Conductor(s)	3	16 AWG	19x29	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.008 in (0.20 mm)	0.073 in (1.9 mm)	Black, Red, White

Outer Shield

Material
No Shield

Outer Jacket

Material	Nom. Thickness	Nom. Diameter	Ripcord
PVC - Polyvinyl Chloride	0.015 in (0.38 mm)	0.187 in	Yes

Overall Cable Diameter (Nominal):	0.187 in

Electrical Characteristics

Electricals

Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
4.2 Ohm/1000ft	36.5 pF/ft (120 pF/m)	6.25 Amps per Conductor at 25ºC

Voltage

UL Voltage Rating
300 V

Mechanical Characteristics

Temperature

UL Temperature	Operating
75°C	-20°C To +75°C

Bend Radius

Stationary Min.	Installation Min.
1.87 in (47.5 mm)	1.87 in

Max. Pull Tension:	88 lbs (40 kg)

Bulk Cable Weight:	33 lbs/1000ft

Standards and Compliance

Environmental Suitability:	Indoor - Plenum, Indoor

Flammability / Reaction to Fire:	NFPA 262 (UL 910), FT6

NEC / UL Compliance:	Article 800, CMP

CEC / C(UL) Compliance:	CMP

European Directive Compliance:	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance:	China RoHS II (GB/T 26572-2011)

Non-Plenum Number:	5201UE

History

Update and Revision:	Revision Number: 0.356 Revision Date: 04-08-2022

Part Numbers

Variants

Item #	Color	Putup Type	Length	UPC
6201UE 8771000	Natural	Reel	1,000 ft	612825174196
6201UE 877U1000	Natural	UnReel	1,000 ft	612825427117
6201UE 877Z1000	Natural	ReelTuff Box	1,000 ft	612825174219

Date: 2005-04-01

Download

Belden-Copper-Catalog-2016.pdf

Download

Audio Video Solutions Guide

Download

No accessories are available for this product
