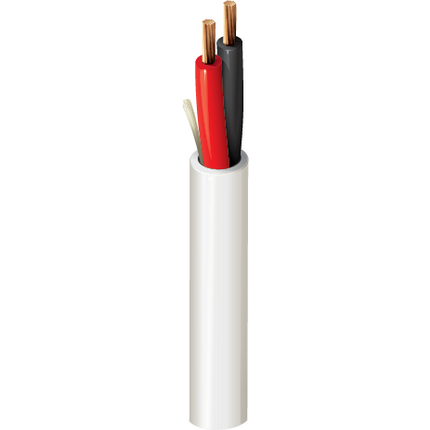

6200UE - Security & Sound, 2 Conductor 16 AWG, BC, Unshielded, CMP


Security & Commercial Audio Cable, Plenum-CMP 2-16 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)1619x29BC - Bare Copper2
Conductor Count: 2
Insulation
ElementMaterialMaterial Trade NameNominal Wall Thickness
Conductor(s)PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.009 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.184 in0.015 inYes

Construction and Dimensions

Cabling
Lay DirectionTwists
Left Hand4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
3.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
36.5 pF/ft
Inductance
Nominal Inductance
0.145 µH/ft
Current
ElementMax. Recommended Current [A]
10C Temperature RisePer conductor @ 25°C ambient: 6.25 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 24 lbs/1000ft
Max Recommended Pulling Tension: 60.8 lbs
Min Bend Radius/Minor Axis: 2.0 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
CSA Flammability: FT6
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Y

Part Number

Non-Plenum Number: 5200UH
Variants
Item #ColorPutup TypeLengthUPC
6200UE 010U250BlackUnReel250 ft612825340126
6200UE 010U500BlackUnReel500 ft612825421689
6200UE 010Z500BlackReelTuff Box500 ft612825426202
6200UE 0101000BlackReel1,000 ft612825174035
6200UE 010U1000BlackUnReel1,000 ft612825174042
6200UE 010Z1000BlackReelTuff Box1,000 ft612825435310
6200UE D151000BlueReel1,000 ft612825421672
6200UE D15Z1000BlueReelTuff Box1,000 ft612825174080
6200UE 008U1000GrayUnReel1,000 ft612825421641
6200UE 008Z1000GrayReelTuff Box1,000 ft612825351078
6200UE 005Z1000GreenReelTuff Box1,000 ft612825173984
6200UE 0051000Green, DarkReel1,000 ft612825421627
6200UE 877U250NaturalUnReel250 ft612825421665
6200UE 877500NaturalReel500 ft612825340133
6200UE 8771000NaturalReel1,000 ft612825174073
6200UE 877U1000NaturalUnReel1,000 ft612825174066
6200UE 877Z1000NaturalReelTuff Box1,000 ft612825351030
6200UE 0031000OrangeReel1,000 ft612825421603
6200UE 003Z1000OrangeReelTuff Box1,000 ft612825173977
6200UE 012Z1000PinkReelTuff Box1,000 ft612825340140
6200UE 0021000RedReel1,000 ft612825421597
6200UE 002Z1000RedReelTuff Box1,000 ft612825351054
6200UE 0071000VioletReel1,000 ft612825421634
6200UE 007Z1000VioletReelTuff Box1,000 ft612825173991
6200UE 009U250WhiteUnReel250 ft612825174028
6200UE 009Z250WhiteReelTuff Box250 ft612825439332
6200UE 009U500WhiteUnReel500 ft612825421658
6200UE 009Z500WhiteReelTuff Box500 ft612825439349
6200UE 009Z750WhiteReelTuff Box750 ft612825174059
6200UE 009U1000WhiteUnReel1,000 ft612825174011
6200UE 0091000WhiteReel1,000 ft612825174004
6200UE 009Z1000WhiteReelTuff Box1,000 ft612825439325
6200UE 0041000YellowReel1,000 ft612825421610
6200UE 004Z1000YellowReelTuff Box1,000 ft612825351061
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.277 Revision Date: 05-11-2020
Date: 2005-04-01
Belden-Copper-Catalog-2016.pdf
Audio Video Solutions Guide
Broadcast Solutions Guide
