6200FH - Security & Sound, 2 Conductor 16 AWG TC, Shielded, Plenum

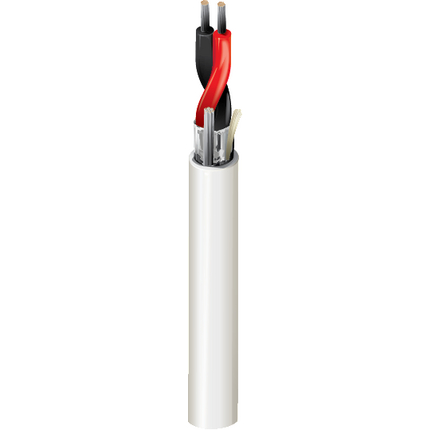

Security & Commercial Audio Cable, 2 Conductor 16 AWG stranded (19x29) tinned copper conductors with Flamarrest® insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.

Product Overview

Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1619x29TC - Tinned Copper2
Conductor Count: 2
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.009 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeAlum / PolyBeldfoil®100%TC - Tinned Copper24
Outer Jacket Material
MaterialNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)0.015 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
4 Ohm/1000ft15.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
81.5 pF/ft146.7 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
Max. Recommended Current [A]
6.25 Amps per conductor at 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 31 lbs/1000ft
Max. Pull Tension: 85.5 lbs
Min Bend Radius/Minor Axis: 2.0 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes
Plenum Number: 5200FH

Part Number

Variants
Item #ColorPutup TypeLengthUPC
6200FH 877500NaturalReel500 ft612825351047
6200FH 8771000NaturalReel1,000 ft612825173946

History

Update and Revision: Revision Number: 0.152 Revision Date: 06-01-2020
Date: 2005-04-01
No accessories are available for this product
