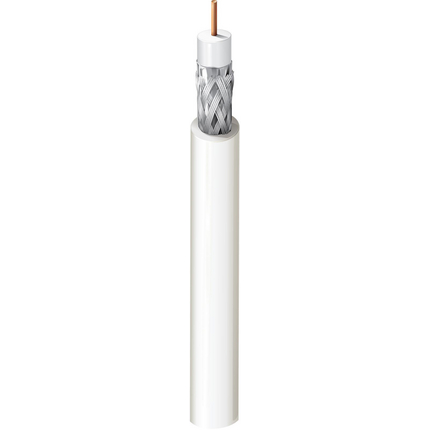

6139B8 - Surveillance CATV MATV, RG-11 #14 BC, Duofoil® + 60% AL Braid, CMP-CATVP


Surveillance, CATV & MATV Cable, RG11, Plenum-CMP & CATVP, 14 AWG solid bare copper, foam FEP core, Duofoil® + 60% aluminum braid, PVDF jacket

Product Overview

Suitable Applications: CATV, MATV

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Coax
14SolidBC - Bare Copper0.064 in1
Insulation
MaterialNominal Diameter
FEP - Fluorinated Ethylene Propylene (Foam)0.274 in
Color Chart 2
Number
1
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]
Tape1Alum / Poly / AlumDuofoil®100 %
Braid2Aluminum60 %
Outer Jacket Material
MaterialNominal Diameter
PVDF - Polyvinylidene Fluoride0.348 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Outer Shield DCROuter Conductor DCR
2.6 Ohm/1000ft2.6 Ohm/1000ft3.8 Ohm/1000ft3.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Inductance
Nominal Inductance
0.106 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.17 dB/100ft
10 MHz0.4 dB/100ft
50 MHz1 dB/100ft
100 MHz1.4 dB/100ft
200 MHz2.3 dB/100ft
400 MHz3.7 dB/100ft
700 MHz5.3 dB/100ft
900 MHz6.4 dB/100ft
1000 MHz6.9 dB/100ft
Delay
Max. Delay SkewNominal DelayNominal Velocity of Propagation (VP) [%]
84 ns/100m1.22 ns/ft83.0 %
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 125°C
Operating Temp Range: -20°C To +125°C

Mechanical Characteristics

Bulk Cable Weight: 58 lbs/1000ft
Max Recommended Pulling Tension: 93 lbs
Min Bend Radius/Minor Axis: 3.5 in

Standards

NEC/(UL) Specification: CATVP, CMP
CEC/C(UL) Specification: CMP
RG Type: 11/U Type

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Aerial: Yes - When supported by messenger wire
Suitability - Burial: No
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorPutup TypeLengthUPC
6139B8 0091000WhiteReel1,000 ft612825173816
Footnote: C - CRATE REEL PUT-UP.

Product Notes

Notes: Print legend includes sequential footage marks.

History

Update and Revision: Revision Number: 0.252 Revision Date: 04-28-2020
Date: 2005-04-01
