613948 - Surveillance CCTV, RG-11 #14 BC, 95% BC Braid, CMP

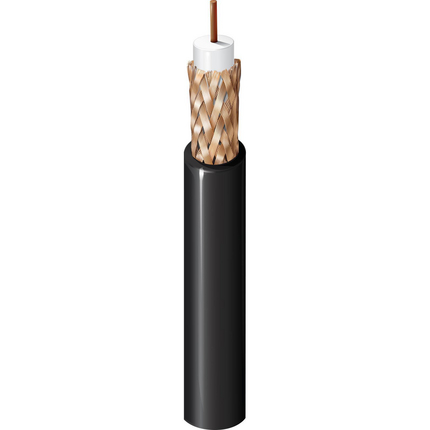

Surveillance & CCTV Cable, RG11, Plenum-CMP, 14 AWG solid bare copper, foam FEP core, 95% bare copper braid, PVDF

Product Overview

Suitable Applications: CCTV

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Coax
14SolidBC - Bare Copper0.064 in1
Conductor Count: 1
Insulation
MaterialNominal Diameter
FFEP - Foam Fluorinated Ethylene Propylene0.274 in
Outer Shield Material
TypeMaterialCoverage [%]
BraidBC - Bare Copper95 %
Outer Jacket Material
MaterialNominal Diameter
PVDF - Fluorocopolymer0.348 in
Weight: 0.935 lbs

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Outer Shield DCROuter Conductor DCR
2.6 Ohm/1000ft2.6 Ohm/1000ft1.2 Ohm/1000ft1.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.3 pF/ft
Inductance
Nominal Inductance
0.106 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.17 dB/100ft
10 MHz0.4 dB/100ft
50 MHz0.95 dB/100ft
100 MHz1.4 dB/100ft
200 MHz2.1 dB/100ft
400 MHz3.4 dB/100ft
700 MHz5 dB/100ft
900 MHz6 dB/100ft
1000 MHz6.5 dB/100ft
Delay
Max. Delay SkewNominal DelayNominal Velocity of Propagation (VP) [%]
84 ns/100m1.22 ns/ft83.0 %
Unbalanced Crosstalk
Typical Unbalanced NEXT %Typical Unbalanced FEXT %
0.9 MHz
0.9 MHz
Voltage
UL Voltage Rating
300 V RMS
Mated Connection
Frequency (MHz)
1

Temperature Range

UL Temp Rating: 125°C
Operating Temp Range: -20°C To +125°C

Mechanical Characteristics

Bulk Cable Weight: 81 lbs/1000ft
Max Recommended Pulling Tension: 138 lbs
Min Bend Radius During Installation: 0.9 in
Min Bend Radius/Minor Axis: 3.5 in
Dimensions (WxHxD)
WidthHeightDepth
10.971

Standards

NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
RG Type: 11/U Type
Series Type: Series 11

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Aerial: Yes - When supported by messenger wire
Suitability - Hazardous Locations: No
Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 513945
Variants
Item #ColorUPCLengthFootnote
613948 0091000White6128251738231,000 ftC
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.304 Revision Date: 11-12-2019
Date: 2005-04-01
No accessories are available for this product
