6122UL - Fire Alarm, #14-4c BC, FPLP

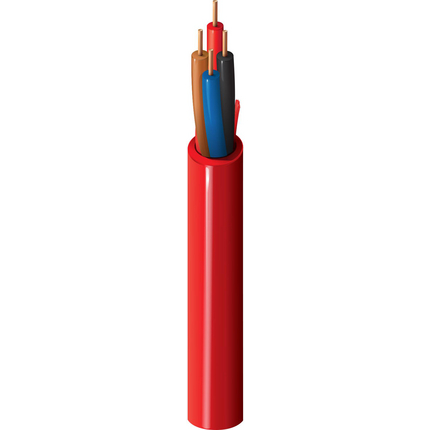

Fire Alarm Cable, Plenum-FPLP, 4-14 AWG solid bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
14SolidBC - Bare Copper4
Conductor Count: 4
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.01 in
Color Chart
NumberColor
1Black
2Red
3Brown
4Blue
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC-LS - Polyvinyl Chloride (Low Smoke)Flamarrest®0.236 in0.015 inYes

Construction and Dimensions

Cabling
Twists
3 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
2.43 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
37 pF/ft
Current
Max. Recommended Current [A]
6.4 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 66.8 lbs/1000ft
Max Recommended Pulling Tension: 198.8 lbs
Min Bend Radius/Minor Axis: 2.375 in

Standards

NEC Articles: 760
NEC/(UL) Specification: FPLP
Other Specification: California State Fire Marshall

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5122UL
Variants
Item #ColorUPC
6122UL 0021000Red612825173809
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.218 Revision Date: 04-28-2020
Date: 2005-04-01
