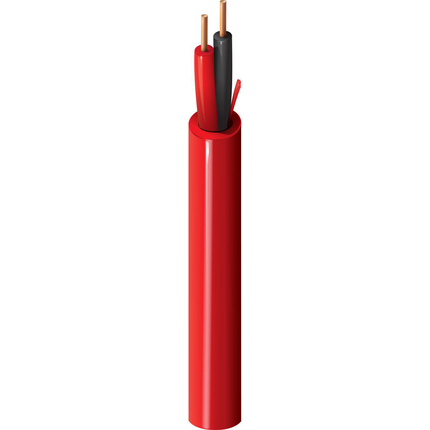

6120UJ - Fire Alarm, #14-2c BC, FPLP


Fire Alarm Cable, Plenum-FPLP, 2-14 AWG solid bare copper conductors with FEP insulation, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Addressable Fire Systems, Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
14SolidBC - Bare Copper2
Conductor Count: 2
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
Thermoplastic FluoropolymerTeflon®0.007 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.186 in0.015 in

Construction and Dimensions

Cabling
Twists
4.8 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
2.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
26 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
Max. Recommended Current [A]
8 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 33 lbs/1000ft
Max Recommended Pulling Tension: 100 lbs
Min Bend Radius/Minor Axis: 1.9 in

Standards

NEC Articles: 760
NEC/(UL) Specification: FPLP
Other Specification: California State Fire Marshall

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT6
UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPC
6120UJ 0021000Red612825173694

Product Notes

Notes: Teflon® is a trademark of DuPont.

History

Update and Revision: Revision Number: 0.209 Revision Date: 08-22-2019
Date: 2005-10-01
