6120FL - Fire Alarm, #14-2c BC, Shielded, FPLP

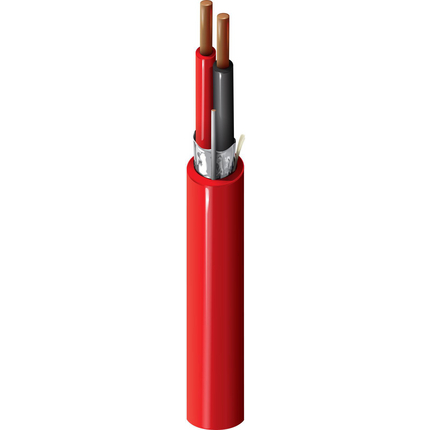

Fire Alarm Cable, Plenum-FPLP, 2-14 AWG solid bare copper conductors with Flamarrest® insulation, overall Beldfoil® shield, Flamarrest® jacket with ripcord

Product Overview

Suitable Applications: Fire Protection, Alarm, Signal, Monitor/Detection, Audio Circuits, Control Circuits, Initiating Circuits, Notification Circuits

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
14SolidBC - Bare Copper2
Conductor Count: 2
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.011 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper22Solid
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.209 in0.015 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
2.42 Ohm/1000ft11.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
86 pF/ft154.8 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Current
Max. Recommended Current [A]
8 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 39.9 lbs/1000ft
Max Recommended Pulling Tension: 113.4 lbs
Min Bend Radius/Minor Axis: 2.1 in

Standards

NEC Articles: 760
NEC/(UL) Specification: FPLP
CPR Euroclass: Eca
Other Specification: California State Fire Marshall

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5120FL
Variants
Item #ColorUPCFootnote
6120FL 0021000Red612825173670C
6120FL 002500Red612825173687C
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.220 Revision Date: 08-22-2019
Date: 2005-04-01
No accessories are available for this product
