6101FE - Security & Sound, 3 Conductor 14 AWG BC, Shielded, Plenum

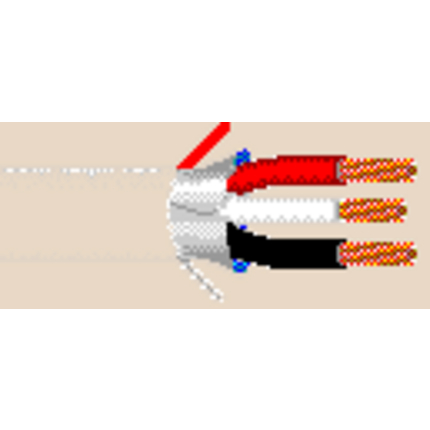

Security & Commercial Audio Cable, 3 Conductor 14 AWG stranded (19x27) bare copper conductors with Flamarrest® insulation, Beldfoil® shield, Plenum, Flamarrest® jacket with ripcord.

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1419x27BC - Bare Copper3
Conductor Count: 3
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
PVC - Polyvinyl ChlorideFlamarrest®0.011 in
Color Chart
NumberColor
1Black
2White
3Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper16Solid
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl ChlorideFlamarrest®0.234 in0.015 inYes

Construction and Dimensions

Cabling
Twists
3.7 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
2.54 Ohm/1000ft11.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
85 pF/ft153 pF/ft
Current
ElementMax. Recommended Current [A]
10C Temperature Rise8 Amps per Conductor at 25ºC
Voltage
UL DescriptionUL Voltage Rating
UL type CL2P150 V

Temperature Range

UL Temp Rating: 75°C

Mechanical Characteristics

Bulk Cable Weight: 56.5 lbs/1000ft
Max. Pull Tension: 172.9 lbs
Min Bend Radius/Minor Axis: 2.4 in

Standards

NEC Articles: Article 725
NEC/(UL) Compliance: CL2P

Applicable Environmental and Other Programs

Environmental Space: Indoor - Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
UL voltage rating: 150 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5101FE
Variants
Item #ColorPutup TypeLengthUPC
6101FE 8771000NaturalReel1,000 ft612825173557
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.285 Revision Date: 09-30-2020
Date: 2005-04-01
