600PTZ - PTZ, RG-59 #20, #23-1pr, #18-2c, CMP, Siamese

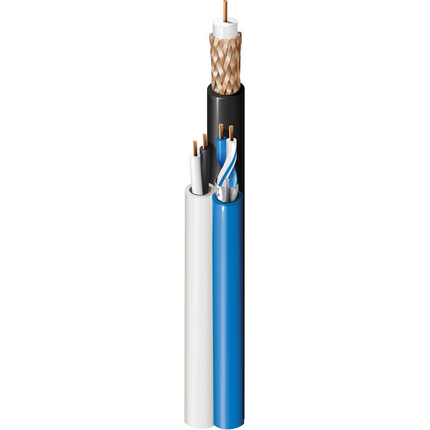

PTZ (CCTV + Control + Power) Cable, Plenum-CMP, 1-RG59 20 AWG solid bare copper with foam PFA, 95% bare copper braid, 1-23 AWG solid bare copper pair with FEP insulation, 2-18 AWG stranded bare copper conductors with Flamarrest® insulation, Siamese with Flamarrest® jacket

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNominal DiameterNo. of ConductorsNo. of PairsNo. of Coax
Video20SolidBC - Bare Copper0.032 in11
Data/Control23SolidBC - Bare Copper0.023 in1
Power187x26BC - Bare Copper0.047 in2
Conductor Count: 5
Insulation
MaterialMaterial Trade NameNominal DiameterNominal Wall Thickness
FFEP - Foam Fluorinated Ethylene Propylene0.133 in
FEP - Fluorinated Ethylene Propylene0.041 in
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.009 in
Color Chart
NumberColor
Coax coreNatural
Data/Control pairBlue and White/Blue
Power conductorsBlack and Red
Coax JacketBlack
Data/Control JacketBlue
Power jacketWhite
Color Chart 4
NumberColor
VideoBlack
1Blue
1White
Inner Shield Material
TypeMaterialCoverage [%]
BraidBC - Bare Copper95 %
Unshielded
Unshielded
Inner Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.193 in0.016 in
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.116 in0.017 in
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.158 in0.015 in
Outer Jacket Material
MaterialMaterial Trade NameNominal Diameter
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.351 in
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.116 in
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.158 in
Unjacketed0.351 in

Electrical Characteristics

Conductor DCR
ElementNominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Inner Shield DCR
Video10 Ohm/1000ft10 Ohm/1000ft2.5 Ohm/1000ft
Data/Control20 Ohm/1000ft20 Ohm/1000ft
Power6.5 Ohm/1000ft6.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
16.1 pF/ft
15.0 pF/ft
30.0 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.2 dB/100ft
5 MHz0.7 dB/100ft
10 MHz1.1 dB/100ft
50 MHz1.8 dB/100ft
100 MHz2.7 dB/100ft
200 MHz3.9 dB/100ft
400 MHz5.9 dB/100ft
700 MHz8.5 dB/100ft
900 MHz10 dB/100ft
1000 MHz10.7 dB/100ft
Delay
Max. Delay SkewNominal DelayNominal Velocity of Propagation (VP) [%]
84 ns/100m1.21 ns/ft84 %
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 5 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temp Range: 0°C To +75°C
Operating Temp Range: -10°C To +75°C
Separation Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 57 lbs/1000ft
Max Recommended Pulling Tension: 125 lbs
Min Bend Radius/Minor Axis: 3.5 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
RG Type: 59/U Type
Other Specification: Video coax: RG 59/U

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 500PTZ
Variants
Item #ColorUPCFootnote
600PTZ 0001000Black, Blue, White612825166054C
Footnote: C - CRATE REEL PUT-UP.
Patent: www.belden.com/p

Product Notes

Notes: RG59 CCTV + 1 PR 23 UTP + 2C 18 AWG CMP. Individually jacketed and color coded components, cabled around and each fused to a central binding spline. Cold environment installation: When installing cables that have been stored at ambient temperatures of 32 degrees Fahrenheit (0 degrees Centigrade) or lower, Belden recommends conditioning of the cable for 12 hours at room temperature prior to individual cable leg separation.

History

Update and Revision: Revision Number: 0.244 Revision Date: 08-22-2019
Date: 2005-04-01
