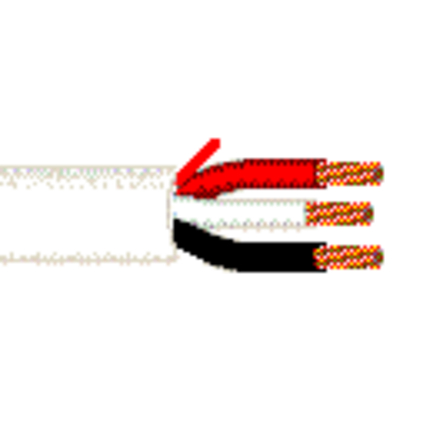

6001UE - Security & Sound, 3 Conductor 12 AWG BC, Plenum


Security & Commercial Audio Cable, 3 Conductor 12 AWG stranded (19x25) bare copper conductors with Flamarrest® insulation, Plenum, Flamarrest® jacket with ripcord.

Product Overview

Environmental Space: Indoor - Plenum
Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1219x25BC - Bare Copper3
Conductor Count: 3
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.011 in
Color Chart
NumberColor
1Black
2White
3Red
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.273 in0.015 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
1.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
36 pF/ft
Current
Max. Recommended Current [A]
12 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
150 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 78.5 lbs/1000ft
Max Recommended Pulling Tension: 228 lbs
Min Bend Radius/Minor Axis: 2.75 in

Standards

NEC Articles: 725
NEC/(UL) Specification: CL2P

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
UL voltage rating: 150 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5001UE
Variants
Item #ColorUPCLengthFootnote
6001UE 8771000Natural6128251717991,000 ftC
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.258 Revision Date: 08-22-2019
Date: 2005-04-01
