6000UE - Security & Sound, 2 Conductor 12 AWG, BC, CMP

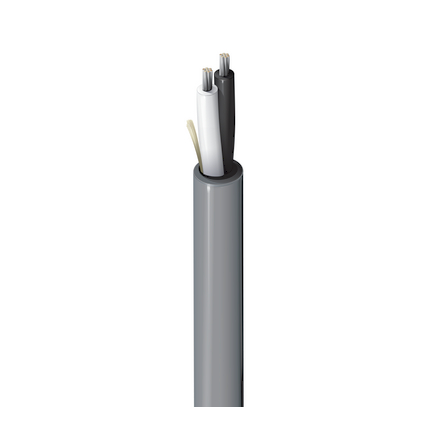

Security & Commercial Audio Cable, Plenum-CL2P 2-12 AWG stranded bare copper conductors with Flamarrest® insulation, Flamarrest® jacket with ripcord

Product Overview

Environmental Space: Indoor - Plenum
Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1219x25BC - Bare Copper2
Conductor Count: 2
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.01 in
Color Chart
NumberColor
1Black
2White
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialMaterial Trade NameNominal DiameterNominal Wall ThicknessRipcord
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.252 in0.015 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
1.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
36 pF/ft
Inductance
Nominal Inductance
0.14 µH/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 12 A
Voltage
UL Voltage Rating
150 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 52 lbs/1000ft
Max Recommended Pulling Tension: 152 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC Articles: 725
NEC/(UL) Specification: CL2P
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 150 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5000UH
Variants
Item #ColorUPCLengthFootnote
6000UE 0101000Black6128254329131,000 ft
6000UE 010Z1000Black6128254341081,000 ft
6000UE 010Z1000Black6128254341081,000 ft
6000UE 010Z500Black612825166108500 ft
6000UE 8771000Natural6128251661151,000 ftC
6000UE 877500Natural612825383116500 ft
6000UE 877Z1000Natural6128254341221,000 ft
6000UE 877Z1000Natural6128254341221,000 ft
6000UE 877Z500Natural612825166122500 ft
6000UE 0121000Pink6128253379041,000 ftC
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.264 Revision Date: 08-22-2019
Date: 2005-04-01
