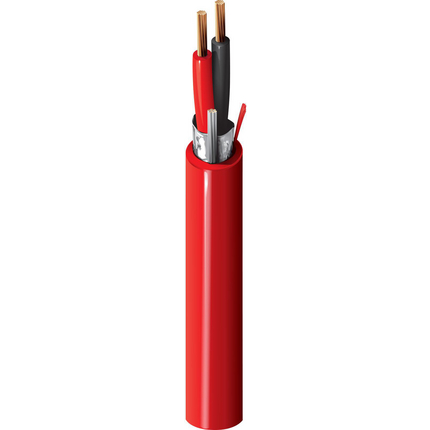

6000FL - Security & Sound, #12-2c, BC, O/A Foil, FPLP


Security & Sound Cable , Plenum-FPLP, 2-12 AWG stranded bare copper conductors with Flamarrest® insulation, Beldfoil® shield and Flamarrest® jacket with ripcord

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1219x25BC - Bare Copper2
Conductor Count: 2
Insulation
MaterialMaterial Trade NameNominal Wall Thickness
LS PVC - Low Smoke Polyvinyl ChlorideFlamarrest®0.011 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeAluminum/PolyesterBeldfoil®100.0 %TC - Tinned Copper20
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.260 in0.015 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
1.6 Ohm/1000ft7.0 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
93 pF/ft167.5 pF/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C: 17.75 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: 0°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 56 lbs/1000ft
Max Recommended Pulling Tension: 152 lbs
Min Bend Radius/Minor Axis: 2.6 in

Standards

NEC Articles: 760
NEC/(UL) Specification: FPLP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2009-10-01
CA Prop 65 (CJ for Wire & Cable): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 5000FL
Variants
Item #ColorUPCFootnote
6000FL 0021000Red612825166085C
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.53 Revision Date: 07-11-2019
Date: 2009-10-01
