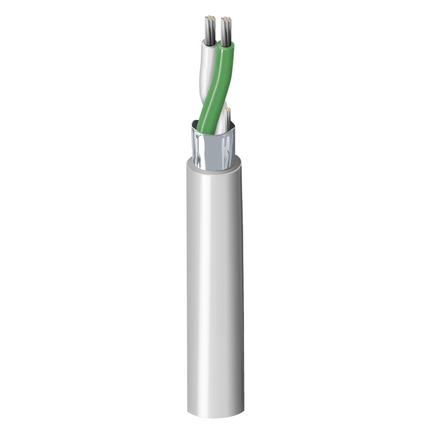

(4)OSDP RS-485, 1 Pair Stranded 24AWG (7x30) Tinned Copper, Foam-PE Insulation, Overall Shield+Tinned Copper drainwire, LSZH Outer Jacket
| Suitable Applications: | Instrumentation and computer cable. For OSDP EIA RS-485 transmissions applications |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 2 | 22 AWG | 7x30 | TC - Tinned Copper |
| Element | Material | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| Pair(s) | PE - Polyethylene (Foam) | 2.40 mm (0.0945 in) | Green & White |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (Solid) TC |
| Material | Nom. Thickness |
|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 0.8 mm (0.031 in) |
| Overall Cable Diameter (Nominal): | 6.60 mm (0.260 in) |
| Max. Conductor DCR | Nom. Characteristic Impedence |
|---|---|
| 59.7@20°C Ohm/km | 120 Ohm |
| Voltage Rating |
|---|
| 300 V |
| UL Temperature |
|---|
| -20°C-75°C |
| Installation Min. |
|---|
| 66 mm (2.6 in) |
| Environmental Suitability: | Indoor, Non-Halogenated |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| ISO/IEC Compliance: | IEC 61034-2 - Smoke Density Min Transmittance = 60% |
| European Halogen Free Standards: | IEC 60754-1 - Halogen Amount = ≤0.5 %, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| Update and Revision: | Revision Number: 0.14 Revision Date: 09-22-2025 |
