5660FT - Thermostat & Control, #24-2c, TC, O/A Foil, CMR

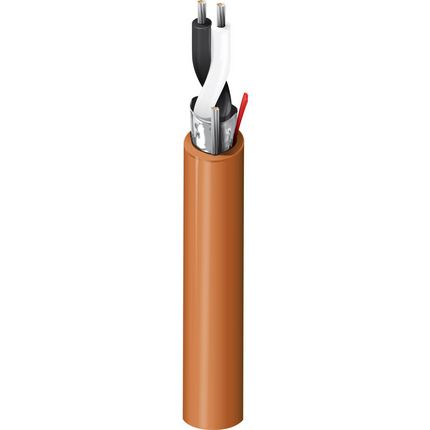

Thermostat & Control Cable, Riser-CMR, 1-24 AWG solid tinned copper pair with foam polyolefin insulation, Beldfoil® shield, PVC jacket

Product Overview

Suitable Applications: Thermostat, Control, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
24SolidTC - Tinned Copper1
Conductor Count: 2
Insulation
MaterialMaterial Trade Name
PE - Polyethylene (Foam)Datalene®
Color Chart
NumberColor
1Black & White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper24Solid
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.138 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
24.8 Ohm/1000ft15.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
16.9 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Delay
Max. Delay Skew
78 ns/100m
High Freq
Max./Min. Input Impedance (unFitted)
100 ± 22 Ohm
Current
Max. Recommended Current [A]
3.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 8.8 lbs/1000ft
Max. Pull Tension: 15 lbs
Min Bend Radius/Minor Axis: 1.4 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6660FT

Part Number

Variants
Item #ColorUPC
5660FT 0011000Brown612825164791
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.250 Revision Date: 09-30-2020
Date: 2006-02-01
No accessories are available for this product
