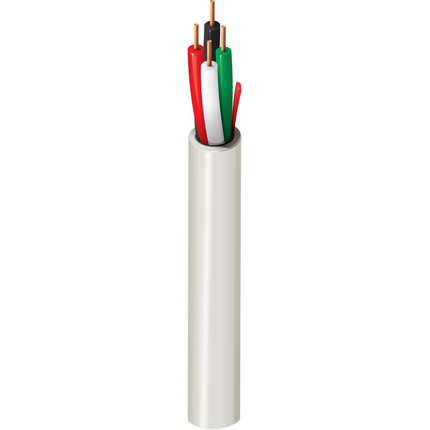

5582UE - Security & Sound, #22-4c, BC, CMR


Security & Sound Cable, Riser-CMR, 4-22 AWG solid bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
22SolidBC - Bare Copper4
Conductor Count: 4
Insulation
Material
PP - Polypropylene
Color Chart
NumberColor
1Black
2Red
3Yellow
4Green
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.13 in0.017 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
15.7 Ohm/1000ft
Current
Max. Recommended Current [A]
2.2 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 14.3 lbs/1000ft
Max Recommended Pulling Tension: 31.2 lbs
Min Bend Radius/Minor Axis: 1.4 in

Standards

NEC Articles: Article 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
5582UE U4F1000Beige U4F612825164548
5582UE U4FC500Beige U4F612825164524
5582UE U4FU500Beige U4F612825164531
5582UE 001C500Brown
5582UE 0081000Gray612825164562
5582UE 008C500Gray
5582UE 008U1000Gray612825164555
5582UE 009C500White612825164579
5582UE 009U1000White612825164586
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.214 Revision Date: 04-28-2020
Date: 2005-04-01
