5543PE - Security & Sound, #22-4pr, BC, Indiv. Foil, CMR

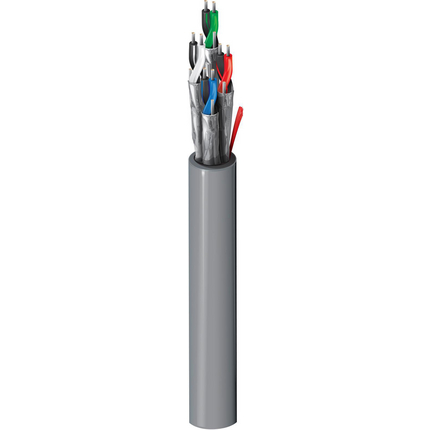

Security & Sound Cable, Riser-CMR, 4-22 AWG stranded bare copper pairs with PVC insulation, Individually Beldfoil® shielded and PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
227x30BC - Bare Copper4
Conductor Count: 8
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.01 in
Color Chart
NumberColor
1Black/Red & Red
2Black/White & White
3Black/Green & Green
4Black/Blue & Blue
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper24
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.303 in0.033 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
16.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
50 pF/ft90 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Current
Max. Recommended Current [A]
2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 50 lbs/1000ft
Max. Pull Tension: 73 lbs
Min Bend Radius/Minor Axis: 3 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG

Applicable Environmental and Other Programs

EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
5543PE 0081000Gray612825164371

History

Update and Revision: Revision Number: 0.219 Revision Date: 08-25-2020
Date: 2005-04-01
