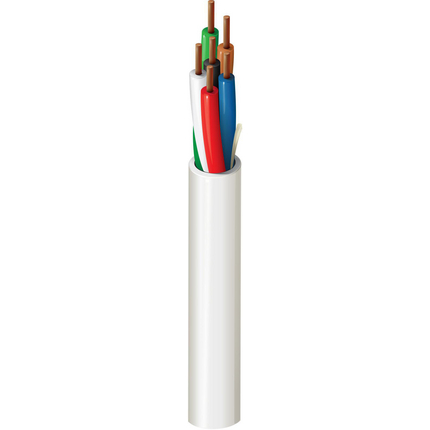

5524UE - Security & Sound, #22-6c, BC, CMR


Security & Sound Cable, Riser-CMR, 6-22 AWG solid bare copper conductors with PVC insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls, and Single Line Telephone.

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
22SolidBC - Bare Copper6
Conductor Count: 6
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.01 in
Color Chart
NumberColor
1Black
2Red
3White
4Green
5Brown
6Blue
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.168 in0.015 inYes

Construction and Dimensions

Cabling
Twists
4.4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
15.7 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
24 pF/ft
Current
Max. Recommended Current [A]
2 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 20.7 lbs/1000ft
Max Recommended Pulling Tension: 46.8 lbs
Min Bend Radius/Minor Axis: 1.7 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6524UE

Part Number

Variants
Item #ColorUPC
5524UE 0081000Gray612825337201
5524UE 008C500Gray

History

Update and Revision: Revision Number: 0.206 Revision Date: 08-22-2019
Date: 2005-04-01
