5520UL - Fire Alarm, #22-2c BC, FPLR

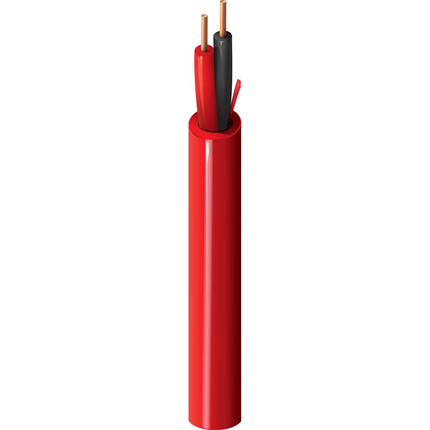

Fire Alarm Cable, Riser-FPLR, 2-22 AWG solid bare copper conductors with PVC insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Pair(s)122 AWGSolidBC - Bare Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Pair(s)PO - Polyolefin0.007 in (0.18 mm)0.040 in (1.0 mm)Black and Red
Outer Shield
Material
No Shield
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.017 in (0.43 mm)0.114 inYes
Overall Cable Diameter (Nominal): 0.114 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRMax. Current
Pair(s)18.4 Ohm/1000ft2.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C-20°C To +75°C
Bend Radius
Stationary Min.Installation Min.
0.91 in (23 mm)0.91 in
Max. Pull Tension: 15.6 lbs (7.08 kg)
Bulk Cable Weight: 8 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: UL1666 Riser, FT4
NEC / UL Compliance: Article 760, FPLR

History

Update and Revision: Revision Number: 0.125 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorUPC
5520UL 0021000Red612825366669
