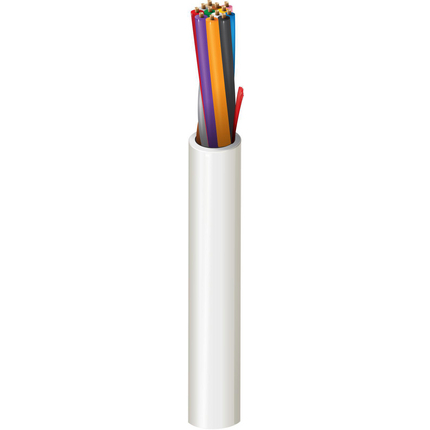

5509UE - Security & Sound, #22-12c, BC, CMR


Security & Sound Cable, Riser-CMR, 12-22 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30BC - Bare Copper12
Conductor Count: 12
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.008 in
Color Chart
NumberColor
1Black
2Red
3White
4Green
5Brown
6Blue
7Orange
8Yellow
9Purple
10Gray
11Pink
12Tan
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.221 in0.018 inYes

Construction and Dimensions

Cabling
Twists
3.4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
16.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
17 pF/ft
Current
Max. Recommended Current [A]
2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 35 lbs/1000ft
Max. Pull Tension: 109 lbs
Min Bend Radius/Minor Axis: 2.25 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6509UE

Part Number

Variants
Item #ColorUPC
5509UE 0081000Gray612825163985
5509UE 008U1000Gray612825163978
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.217 Revision Date: 06-24-2020
Date: 2005-04-01
