5504U1 - Security & Sound, #22-6c, TC, CM, Water-Blocked

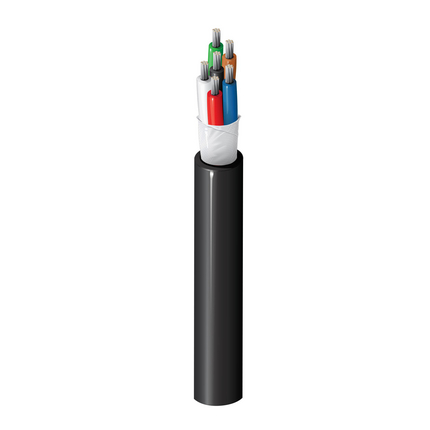

Security & Sound Cable, Rated-CM, 6-22 AWG stranded tinned copper conductors with PVC insulation, Waterblocking tape, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Wet Location, Below-Grade Duct

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30TC - Tinned Copper6
Conductor Count: 6
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.010 in
Color Chart
NumberColor
1Black
2Red
3White
4Green
5Brown
6Blue
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessSeparator Material
PVC - Polyvinyl Chloride0.236 in0.025 inWaterblocking Tape

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
16.2 Ohm/1000ft
Current
Max. Recommended Current [A]
2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -20°C To +105°C

Mechanical Characteristics

Max. Pull Tension: 54.6 lbs
Min Bend Radius/Minor Axis: 2.375 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CM
CEC/C(UL) Compliance: CM

Applicable Environmental and Other Programs

Environmental Space: Outdoor - Water Exposure
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2019-06-20
EU RoHS Compliance Date (yyyy-mm-dd): 2019-06-20

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT1
UL Flammability: UL 1685 UL loading

Part Number

Variants
Item #ColorPutup TypeLength
5504U1 0101000BlackReel1,000 ft

History

Update and Revision: Revision Number: 0.17 Revision Date: 06-24-2020
Date: 2019-06-20
