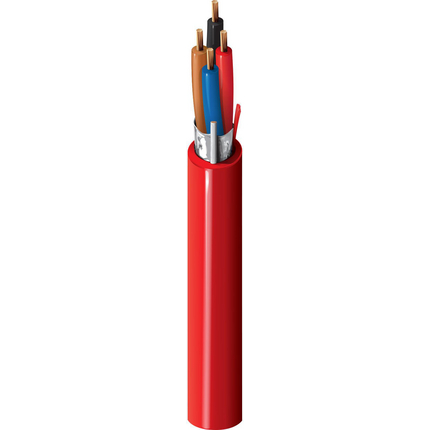

5502FL - Fire Alarm, #22-4c BC, Shielded, FPLR


Fire Alarm Cable, Riser-FPLR, 4-22 AWG stranded bare copper conductors with polyolefin insulation, overall Beldfoil® shield, PVC jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30BC - Bare Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.008 in
Color Chart
NumberColor
1Black
2Red
3Brown
4Blue
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper24Solid
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.146 in0.017 inYes

Construction and Dimensions

Cabling
Twists
6.9 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
16.4 Ohm/1000ft16.75 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
22.5 pF/ft40.5 pF/ft
Current
Max. Recommended Current [A]
4 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 15 lbs/1000ft
Max Recommended Pulling Tension: 36.5 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: 760
NEC/(UL) Specification: FPLR

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2009-10-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6502FL

Part Number

Variants
Item #ColorUPC
5502FL 002U1000Red612825163312

History

Update and Revision: Revision Number: 0.152 Revision Date: 04-28-2020
Date: 2009-10-01
No accessories are available for this product
