5502FH - Security & Sound, 4 Conductor 22 AWG, TC, Shielded, Riser

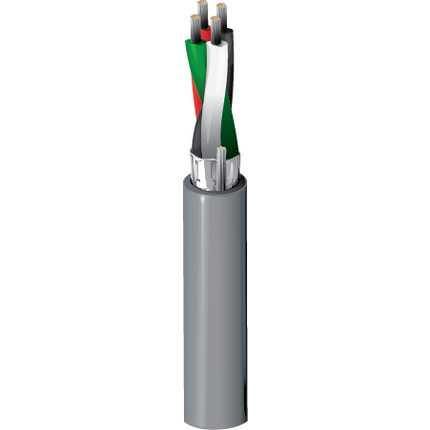

Security & Alarm Cable, 4 Conductor 22 AWG stranded (7x30) tinned copper conductors with polyolefin insulation, Beldfoil® shield, Riser, PVC jacket with ripcord.

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30TC - Tinned Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.008 in
Color Chart
Color
Black
Red
White
Green
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper24
Outer Jacket Material
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.017 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
16.4 Ohm/1000ft16.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
22.5 pF/ft40.5 pF/ft
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 17 lbs/1000ft
Max. Pull Tension: 42 lbs
Min Bend Radius/Minor Axis: 1.375 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG

Applicable Environmental and Other Programs

Environmental Space: Indoor - Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLength
5502FH 009U1000WhiteUnReel1,000 ft

History

Update and Revision: Revision Number: 0.78 Revision Date: 08-25-2020
Date: 2005-04-01
