5501UE - Security & Sound, 3 Conductor 22 AWG BC, Riser

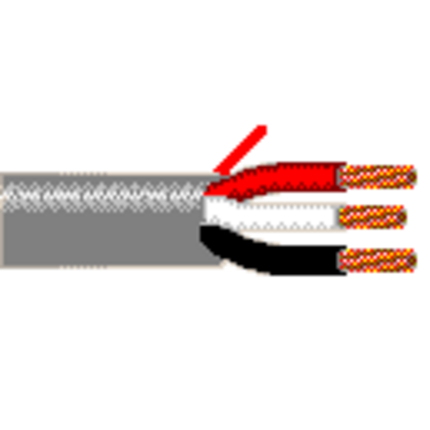

Security & Commercial Audio Cable, 3 Conductor 22 AWG stranded (7x30) bare copper conductors with polyolefin insulation, Riser, PVC jacket with ripcord.

Product Overview

Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls, Single Line Telephone

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30BC - Bare Copper3
Conductor Count: 3
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.008 in
Color Chart
NumberColor
1Black
2Red
3White
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.13 in0.017 inYes

Construction and Dimensions

Cabling
Twists
5.333 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
16.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
17 pF/ft
Current
Max. Recommended Current [A]
2.8 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 10 lbs/1000ft
Max Recommended Pulling Tension: 27.3 lbs
Min Bend Radius/Minor Axis: 1.25 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

Environmental Space: Indoor - Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Vertical Shaft
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6501UE

Part Number

Variants
Item #ColorPutup TypeLengthUPC/EAN
5501UE.00U305GrayReel305 m8719605008664
5501UE 0081000GrayReel1,000 ft612825163244
5501UE 008U1000GrayUnReel1,000 ft612825425878
5501UE 008Z1000GrayReelTuff Box1,000 ft612825163268
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.267 Revision Date: 04-28-2020
Date: 2005-04-01
