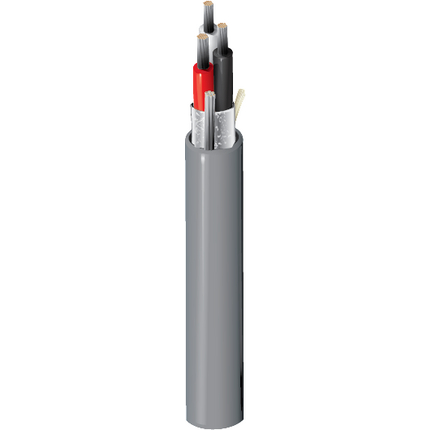

5501FH - Security & Sound, 3 Conductor 22 AWG TC, Shielded, Riser


Security & Commercial Audio Cable, 3 Conductor 22 AWG stranded (7x30) tinned copper conductors with polyolefin insulation, Beldfoil® shield, Riser, PVC jacket with ripcord.

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30TC - Tinned Copper3
Conductor Count: 3
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.008 in
Color Chart
NumberColor
1Black
2Red
3White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper24
Outer Jacket Material
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.017 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
16.4 Ohm/1000ft16.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
28.25 pF/ft51 pF/ft
Current
Max. Recommended Current [A]
2.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C to 75°C

Mechanical Characteristics

Bulk Cable Weight: 12 lbs/1000ft
Max. Pull Tension: 32.8 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: Article 800
NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG

Applicable Environmental and Other Programs

Environmental Space: Indoor - Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Vertical Shaft
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6501FH

Part Number

Variants
Item #ColorPutup TypeLengthUPC
5501FH 0081000GrayReel1,000 ft612825163190
5501FH 008U1000GrayUnReel1,000 ft612825163251

History

Update and Revision: Revision Number: 0.108 Revision Date: 09-30-2020
Date: 2005-04-01
