5500UE - Security & Sound, 2 Conductor 22 AWG, BC, CMR

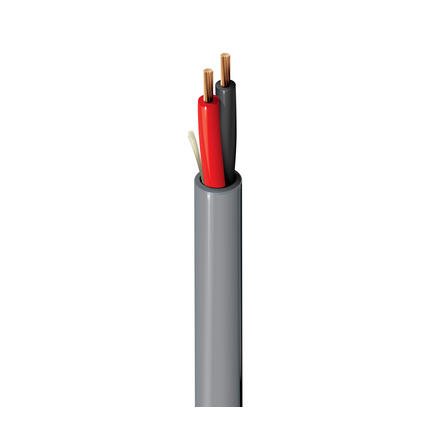

Security & Commercial Audio Cable, Riser-CMR, 2-22 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls, Single Line Telephone

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)227x30BC - Bare Copper2
Conductor Count: 2
Insulation
ElementMaterialNominal DiameterNominal Wall Thickness
Conductor(s)PP - Polypropylene0.045 in0.008 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.123 in0.017 inYes

Construction and Dimensions

Cabling
Twists
3.56 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
16.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
17 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
2.8 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 8 lbs/1000ft
Max Recommended Pulling Tension: 18.2 lbs
Min Bend Radius/Minor Axis: 1.25 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Vertical Shaft
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6500UH

Part Number

Variants
Item #ColorPutup TypeLengthUPC/EAN
5500UE.00152ChromeReel152 m8719605008596
5500UE.00305ChromeReel305 m8719605008602
5500UE 008500GrayReel500 ft612825162896
5500UE 008U500GrayUnReel500 ft612825420033
5500UE 0081000GrayReel1,000 ft612825162919
5500UE 008U1000GrayUnReel1,000 ft612825162902
5500UE 008Z1000GrayReelTuff Box1,000 ft612825163145
5500UE 005Z1000GreenReelTuff Box1,000 ft612825337171
5500UE 005U1000Green, DarkUnReel1,000 ft612825420026

History

Update and Revision: Revision Number: 0.283 Revision Date: 05-11-2020
Date: 2005-04-01
Belden-Copper-Catalog-2016.pdf
Audio Video Solutions Guide
