5500FE - Security & Sound, 2 Conductor 22 AWG, BC, CMR

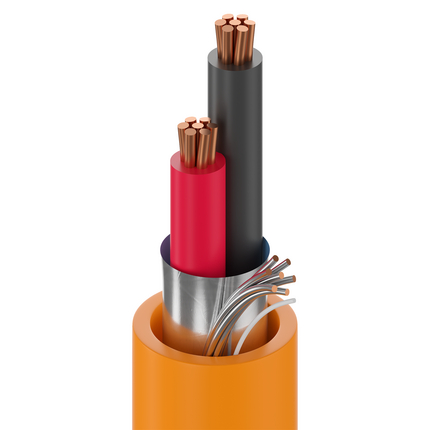

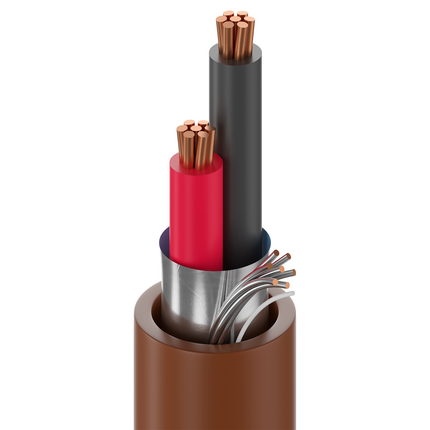

Security & Sound Cable, Riser-CMR, 2-22 AWG stranded bare copper conductors with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Noisy Environment

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Conductor(s)2227x30BC - Bare Copper
Insulation
ElementMaterialThickness [in.]Color Code
Conductor(s)PP - Polypropylene0.008Black, Red
Outer Shield Material
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%24 AWG (7x32) TC
Outer Jacket Material
MaterialThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.017 in0.126 inYes
Cable Diameter (Nominal): 0.126 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
Conductor(s)16.1 Ohm/1000ft34.5 pF/ft62 pF/ft2.8 Amps per Conductor at 25ºC
Nom Outer Shield DCR: 16.1 Ohm/1000ft
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL RatingOperating
75°C-20°C to +75°C
Bend Radius
Stationary Min.Installation Min.
1.5 in1.3 in
Max. Pull Tension: 23.7 lbs
Bulk Cable Weight: 10 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor - Riser, Indoor
Flammability / Fire Resistance: UL1666 Riser, FT4, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMR
CEC / C(UL) Compliance: CMG
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 6500FH

History

Update and Revision: Revision Number: 0.376 Revision Date: 09-30-2020
