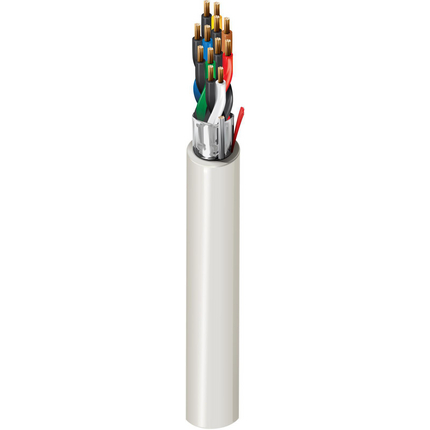

5445FE - Security & Sound, #20-6pr, BC, Shielded, CMR


Security & Sound Cable, Riser-CMR, 6-20 AWG stranded bare copper pairs with polypropylene insulation, Beldfoil® shield and PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
207x28BC - Bare Copper6
Conductor Count: 12
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.007 in
Color Chart
NumberColor
1Black & Red
2Black & White
3Black & Green
4Black & Blue
5Black & Yellow
6Black & Brown
Outer Shield Material
MaterialMaterial Trade NameDrainwire MaterialDrainwire AWGDrainwire Construction n x D
Bi-Laminate (Alum+Poly)Beldfoil®TC - Tinned Copper247x32
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.293 in0.02 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
10.3 Ohm/1000ft9.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
26 pF/ft46.8 pF/ft
Current
Max. Recommended Current [A]
2.6 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 66.7 lbs/1000ft
Max. Pull Tension: 160.3 lbs
Min Bend Radius/Minor Axis: 3 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6445FE

Part Number

Variants
Item #ColorUPC
5445FE 0081000Gray612825162599

History

Update and Revision: Revision Number: 0.226 Revision Date: 06-08-2020
Date: 2005-04-01
