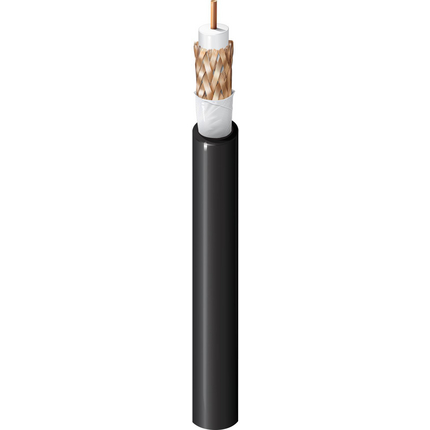

(4)Surveillance & CCTV Cable, RG59, Rated-CM, 20 AWG solid bare copper, foam polyolefin core, 95% bare copper braid, water resistant tape, PVC jacket
| Suitable Applications: | CATV, MATV, Wet Location, Below-Grade Duct |
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Coax |
|---|---|---|---|---|---|
| Coax(es) | 20 | Solid | BC - Bare Copper | 0.032 in | 1 |
| Element | Material | Nominal Diameter |
|---|---|---|
| Coax(es) | PE - Polyethylene (Foam) | 0.145 in |
| Table Notes: | Gas Injected |
| Type | Layer | Material | Coverage [%] |
|---|---|---|---|
| Braid | 1 | Bare Copper (BC) | 95% |
| 2 |
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.245 in |
| Table Notes: | Water resistant tape (over braid, under jacket) |
| Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance | Nominal Outer Shield DCR | Outer Conductor DCR |
|---|---|---|---|
| 11.3 Ohm/1000ft | 10 Ohm/1000ft | 3.5 Ohm/1000ft | 3.5 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
|---|
| 16.3 pF/ft |
| Nominal Inductance |
|---|
| 0.097 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 75 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 5 MHz | 0.65 dB/100ft |
| 10 MHz | 0.9 dB/100ft |
| 50 MHz | 1.9 dB/100ft |
| 100 MHz | 2.6 dB/100ft |
| 200 MHz | 3.6 dB/100ft |
| 400 MHz | 5 dB/100ft |
| 700 MHz | 7 dB/100ft |
| 900 MHz | 8 dB/100ft |
| 1000 MHz | 8.5 dB/100ft |
| Max. Delay Skew | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 83 ns/100m | 1.22 ns/ft | 83% |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temp Rating: | 75°C |
| Operating Temperature Range: | -20°C To +75°C |
| Bulk Cable Weight: | 29 lbs/1000ft |
| Max. Pull Tension: | 51 lbs |
| Min. Bend Radius During Installation: | 2.45 in |
| Min. Bend Radius/Minor Axis: | 2.5 in |
| NEC Articles: | Article 800 |
| NEC/(UL) Compliance: | CM |
| CEC/C(UL) Compliance: | CM |
| CPR Euroclass: | Eca |
| RG Type: | 59 |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | Yes |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Aerial: | Yes - Black only, when supported by messenger wire |
| Suitability - Hazardous Locations: | No |
| Suitability - Indoor: | Yes |
| Suitability - Outdoor: | Yes |
| UL Flammability: | UL1685 UL Loading |
| IEC Flammability: | IEC 60332-1-2 |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 5439X5 0101000 | Black | Reel | 1,000 ft | 612825162391 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Notes: | Print legend includes sequential footage marks. |
| Update and Revision: | Revision Number: 0.379 Revision Date: 04-29-2024 |
