5421FE - Security & Sound, 3 Conductor 20 AWG BC, Shielded, Riser

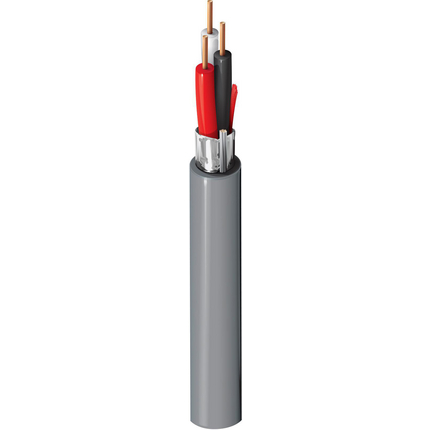

Security & Sound Cable, 3 Conductor 20 AWG solid bare copper conductors with polyolefin insulation, Beldfoil® shield, Riser, PVC jacket with ripcord.

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
20SolidBC - Bare Copper3
Conductor Count: 3
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.007 in
Color Chart
NumberColor
1Black
2Red
3White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper247x32
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.137 in0.017 inYes

Construction and Dimensions

Cabling
Twists
6.9 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
10.2 Ohm/1000ft11.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
54.5 pF/ft98.1 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
3.75 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 18.1 lbs/1000ft
Max Recommended Pulling Tension: 45 lbs
Min Bend Radius/Minor Axis: 1.5 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

Environmental Space: Indoor - Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6421FE

Part Number

Variants
Item #ColorPutup TypeLengthUPC
5421FE 008U1000GrayUnReel1,000 ft612825425700
5421FE 008Z1000GrayReelTuff Box1,000 ft612825162797

History

Update and Revision: Revision Number: 0.303 Revision Date: 04-28-2020
Date: 2005-04-01
