5405UE - Security & Sound, #20-7c, BC, CMR

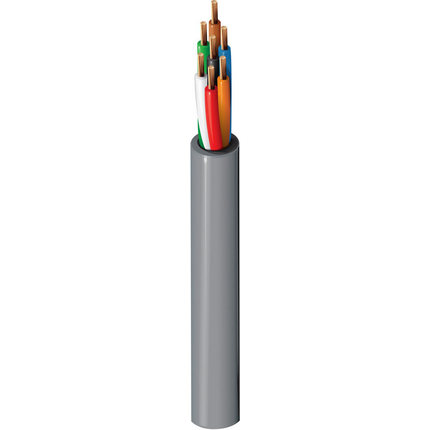

Security & Sound Cable, Riser-CMR, 7-20 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)7207x28BC - Bare Copper
Insulation
MaterialNom. ThicknessNom. Insulation DiameterColor Code
PP - Polypropylene0.008 in (0.20 mm)0.062 in (1.6 mm)Black, Red, White, Green, Brown, Blue, Orange
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.018 in (0.46 mm)0.192 inYes

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
10.82 Ohm/1000ft21 pF/ft (69 pF/m)2.6 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C-20°C To +75°C
Bend Radius
Stationary Min.Installation Min.
1.92 in (48.8 mm)1.92 in
Max. Pull Tension: 109.2 lbs (49.53 kg)
Bulk Cable Weight: 33 lbs/1000ft

Standards and Compliance

Environmental Suitability: Outdoor
Flammability / Reaction to Fire: UL1666 Riser, FT4
NEC / UL Compliance: Article 800, CMR
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 6405UE

History

Update and Revision: Revision Number: 0.292 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorUPC
5405UE 0081000Gray612825162261
Date: 2005-04-01
