5402UE - Security & Sound, #20-4c, BC, CMR

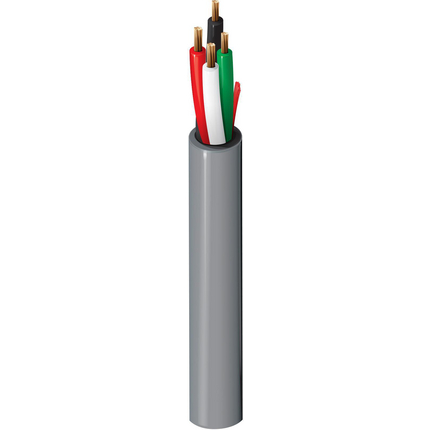

Security & Sound Cable, Riser-CMR, 4-20 AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Conductor(s)4207x28BC - Bare Copper
Insulation
ElementMaterialThickness [in.]Color Code
Conductor(s)PP - Polypropylene0.008Black, Red, White, Green
Outer Jacket Material
MaterialThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.017 in0.160 inYes
Cable Diameter (Nominal): 0.160 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
Conductor(s)10.2 Ohm/1000ft18.5 pF/ft3 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V (CMR)

Mechanical Characteristics

Temperature
UL RatingOperating
75°C-20°C to +75°C
Bend Radius
Stationary Min.Installation Min.
1.75 in1.6 in
Max. Pull Tension: 50 lbs
Bulk Cable Weight: 19 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor - Riser, Indoor
Flammability / Fire Resistance: UL1666 Riser, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMR
CEC / C(UL) Compliance: CMG
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 6402UE

History

Update and Revision: Revision Number: 0.267 Revision Date: 09-30-2020
Date: 2005-04-01
