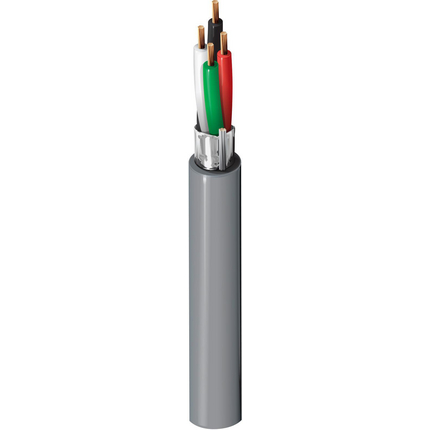

5402FE - Security & Sound, #20-4c, BC, Shielded, CMR


Security & Sound Cable, Riser-CMR, 4-20 AWG stranded bare copper conductors with polyolefin insulation, Beldfoil® shield and PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)207x28BC - Bare Copper4
Conductor Count: 4
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)PP - Polypropylene0.008 in
Color Chart
Color
Black
Red
White
Green
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper247x32
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.163 in0.017 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
10.2 Ohm/1000ft11.3 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
24.75 pF/ft44.5 pF/ft
Current
Max. Recommended Current [A]
3 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 22 lbs/1000ft
Max Recommended Pulling Tension: 59.5 lbs
Min Bend Radius/Minor Axis: 1.75 in

Standards

NEC Articles: Article 800
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6402FE

Part Number

Variants
Item #ColorUPC
5402FE 0081000Gray612825337058
5402FE 008500Gray612825162148
5402FE 008C500Gray
5402FE 008U1000Gray612825162124
5402FE 008U500Gray612825162131
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.242 Revision Date: 05-11-2020
Date: 2005-04-01
