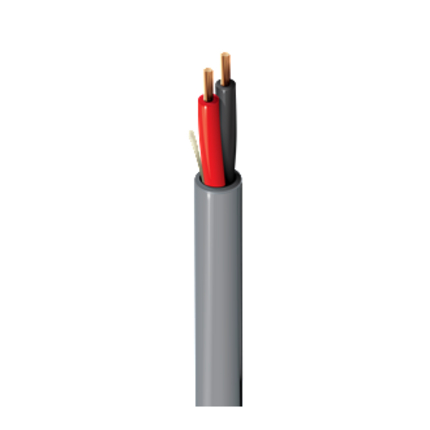

5400UE - Security & Sound, 2 Conductor 20 AWG, BC, Unshielded, CMR


Security & Commercial Audio Cable, Riser-CMR, 2-20 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Environmental Space: Indoor - Riser
Suitable Applications: Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls, Single Line Telephone

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
207x28BC - Bare Copper2
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.008 in
Color Chart
NumberColor
1Black
2Red
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.138 in0.017 inYes

Construction and Dimensions

Cabling
Twists
4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
10.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
18.5 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Current
Max. Recommended Current [A]
3.75 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 12 lbs/1000ft
Max Recommended Pulling Tension: 25.2 lbs
Min Bend Radius/Minor Axis: 1.375 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Vertical Shaft
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6400UE

Part Number

Variants
Item #ColorUPCLengthFootnote
5400UE 0081000Gray6128251619811,000 ftC
5400UE 008U1000Gray6128254201011,000 ft
5400UE 008Z1000Gray6128251620181,000 ft
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.258 Revision Date: 08-22-2019
Date: 2005-04-01
Belden-Copper-Catalog-2016.pdf
Audio Video Solutions Guide
No accessories are available for this product
