5400F1 - Security & Sound, #20-2c, TC, Shielded, CM, Water-Blocked

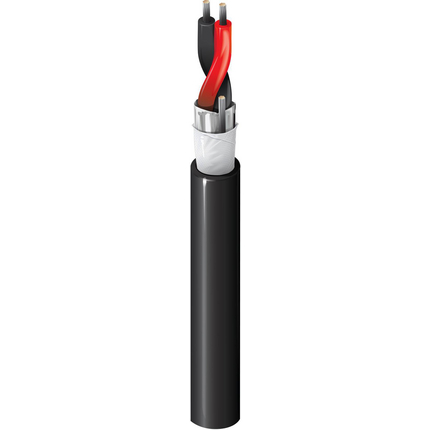

Security & Sound Cable, Rated-CM, 2-20 AWG stranded tinned copper conductors with PVC insulation, waterblocking tape, Beldfoil® shield and PVC jacket with ripcord

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
207x28TC - Tinned Copper2
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.01 in
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100.0 %TC - Tinned Copper22solid
Outer Shield Table Note: Non-woven waterblocking tape
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.206 in0.025 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Outer Shield DCR
10.3 Ohm/1000ft10.3 Ohm/1000ft17.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
56 pF/ft101 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
Per conductor @ 25°C (10°C rise in temp): 3.75 A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 19 lbs/1000ft
Max Recommended Pulling Tension: 37.1 lbs
Min Bend Radius/Minor Axis: 2 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
CSA Flammability: FT1
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCFootnote
5400F1 0081000Gray612825161974C
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.211 Revision Date: 08-22-2019
Date: 2005-10-01
