539841 - RS485, 1 Pr #24 Str TC, PE Ins, OS+TC Brd, PVC Jkt, SIA Armor, PE Jkt

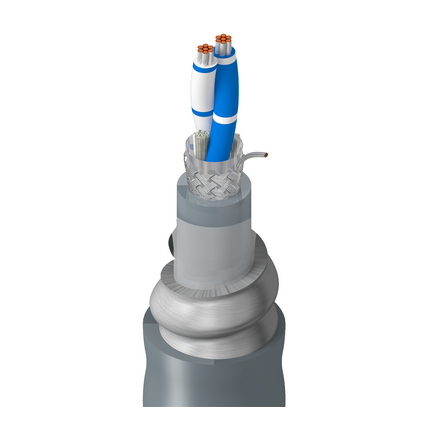

RS-485, 1 Pair 24AWG (7x32) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(90%) Shield, PVC Inner Jacket, Steel Interlock Armor, PE Outer Jacket

Product Overview

Suitable Applications: exposure to rodent, crush, or cut through force, burial, POS, serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, outdoor such as solar, lighting, etc.

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Pair(s)124 AWG7x32TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessColor Code
Pair(s)PE - Polyethylene0.023 in (0.58 mm)White/Blue Stripe & Blue/White Stripe
Outer Shield
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%24 AWG (7x32) TC
BraidTinned Copper (TC)90%
Inner Jacket
MaterialNom. Diameter
PVC - Polyvinyl Chloride0.232 in (5.89 mm)
Armor
Armor Type & Material
SIA - Steel Interlock Armor
Outer Jacket
MaterialNom. ThicknessNom. Diameter
PE - Polyethylene0.045 in (1.1 mm)0.522 in (13.3 mm)
Overall Cable Diameter (Nominal): 0.522 in (13.3 mm)

Electrical Characteristics

Electricals
ElementNom. Characteristic Impedence
Pair(s)120 Ohm
High Frequency (Nominal/Typical)
Element
Pair(s)

Standards and Compliance

Environmental Suitability: Sunlight Resistance

History

Update and Revision: Revision Number: 0.49 Revision Date: 04-08-2022
No accessories are available for this product
