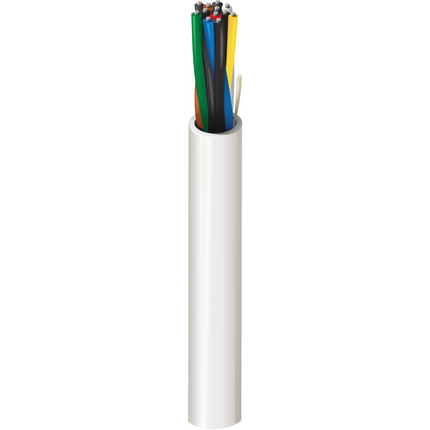

5345UE - Security & Sound, #18-6pr, BC, CMR


Security & Sound Cable, Riser-CMR, 6-18 AWG stranded bare copper pairs with polypropylene insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Pair(s)6187x26BC - Bare Copper
Insulation
MaterialNom. ThicknessNom. Insulation DiameterColor Code
PP - Polypropylene0.0085 in (0.22 mm)0.062 in (1.6 mm)Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.018 in (0.46 mm)0.33 inYes

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
6.93 Ohm/1000ft29 pF/ft (95 pF/m)3.5 Amps per Conductor at 20ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
75°C-20°C To +75°C
Bend Radius
Stationary Min.Installation Min.
3.3 in (84 mm)3.3 in
Max. Pull Tension: 268.8 lbs (121.9 kg)
Bulk Cable Weight: 78 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire: UL 1666 riser, FT4
NEC / UL Compliance: Article 800, CMR
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 6345UE

History

Update and Revision: Revision Number: 0.293 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorUPC
5345UE 0081000Gray612825161325
