5342UE - Security & Sound, #18-3pr, BC, CMR

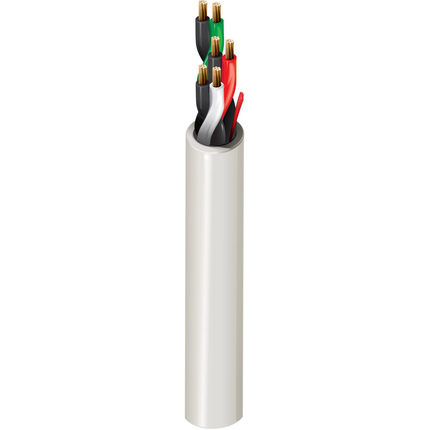

Security & Sound Cable, Riser-CMR, 3-18 AWG stranded bare copper pairs with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187x26BC - Bare Copper3
Conductor Count: 6
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.007 in
Color Chart
NumberColor
1Black & Red
2Black & White
3Black & Green
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.262 in0.017 inYes

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.55 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
29 pF/ft
Current
Max. Recommended Current [A]
3.5 Amps per conductor @ 20°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 46.1 lbs/1000ft
Max. Pull Tension: 134.4 lbs
Min Bend Radius/Minor Axis: 2.7 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6342UE

Part Number

Variants
Item #ColorUPC
5342UE 0081000Gray612825161264
5342UE 008U1000Gray612825161257

History

Update and Revision: Revision Number: 0.214 Revision Date: 04-28-2020
Date: 2005-04-01
