5341PT - Thermostat & Control, #18-2pr, TC, Indiv. Foil, CMR

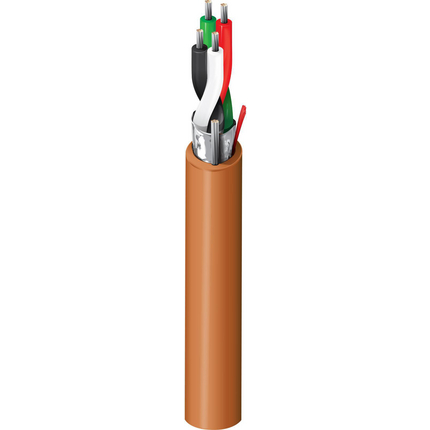

Thermostat & Control Cable, Riser-CMR, 2-18 AWG stranded tinned copper pairs with foam polyolefin insulation, Individually Beldfoil® shielded and PVC jacket with ripcord

Product Overview

Suitable Applications: Thermostat, Control, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187x26TC - Tinned Copper2
Conductor Count: 4
Insulation
MaterialMaterial Trade Name
PE - Polyethylene (Foam)Datalene®
Color Chart
NumberColor
1Black & White
2Green & Red
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %187x26
TC - tinned copper
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.308 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCRNominal Conductor DCR
5.3 Ohm/1000ft6.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
16.9 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
78 ns/100m78 %
High Freq
Max./Min. Input Impedance (unFitted)
100 Ohm
Current
Max. Recommended Current [A]
8.1 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 54 lbs/1000ft
Max Recommended Pulling Tension: 134 lbs
Min Bend Radius/Minor Axis: 3.1 in

Standards

NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6341PT

Part Number

Variants
Item #ColorUPC
5341PT 0011000Brown612825161202
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.251 Revision Date: 04-28-2020
Date: 2006-02-01
