5340U1 - Security & Sound, #18-2c, TC, CMG-FPL-PLTC-ER, Water-Blocked

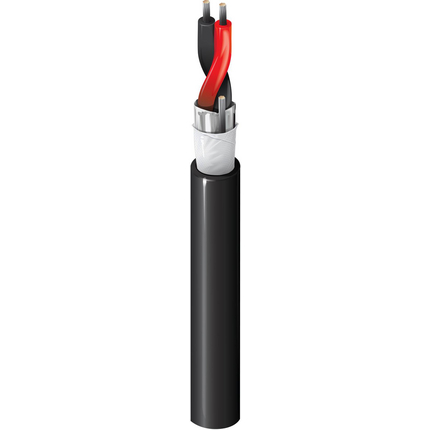

Security & Sound Cable, Rated-CMG-FPL-PLTC-ER, 1-18 AWG stranded tinned copper pair with PVC insulation, Waterblocking tape, PVC jacket

Product Overview

Suitable Applications: Low Voltage, Water-Blocked for Use in Underground Ducts, PLTC, FPL, Intercom, Sound, Audio

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187x26TC - Tinned Copper1
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.017 in
Color Chart
NumberColor
1Black & Red
Outer Shield Material
Material
Unshielded
Outer Shield Table Note: Waterblocking tape
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.266 in0.037 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor Resistance
5.9 Ohm/1000ft5.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
30 pF/ft
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 105°C
Operating Temp Range: -30°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 24 lbs/1000ft
Max Recommended Pulling Tension: 44 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC Articles: 800, 760, 725
NEC/(UL) Specification: CMG, FPL, PLTC-ER
CEC/C(UL) Specification: CMG
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-11-08
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1685 FT4 loading
ISO/IEC Flammability: IEEE 1202 Vertical Tray Flame Test
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCFootnote
5340U1 0101000Black612825161158C
5340U1 0021000Red612825161141C
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.211 Revision Date: 08-22-2019
Date: 2006-11-08
No accessories are available for this product
