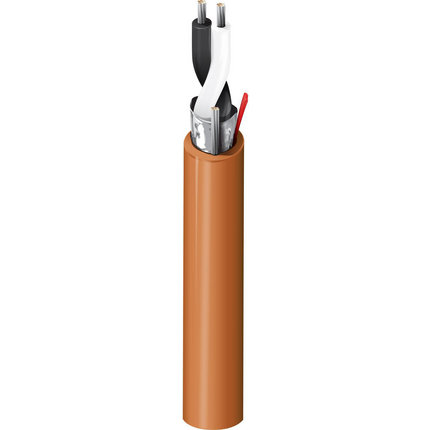

5340FT - Thermostat & Control, #18-2c, TC, O/A Foil, CMR


Thermostat & Control Cable, Riser-CMR, 1-18 AWG stranded tinned copper pair with foam polyolefin insulation, Beldfoil® shield, PVC jacket

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
187x26TC - Tinned Copper1
Conductor Count: 2
Insulation
MaterialMaterial Trade Name
FHDPE - Foamed High Density PolyethyleneDatalene®
Color Chart
NumberColor
1Black & White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper18Solid
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.26 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
6.6 Ohm/1000ft16.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
16.9 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Impedance
Nominal Characteristic ImpedanceNominal Characteristic Tolerance
100 Ohm± 22 Ohm
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
78 ns/100m78 %
Current
Max. Recommended Current [A]
8.1 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 26 lbs/1000ft
Max Recommended Pulling Tension: 67 lbs
Min Bend Radius/Minor Axis: 2.6 in

Standards

NEC/(UL) Specification: CMR
CEC/C(UL) Specification: CMG

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-02-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT4
UL Flammability: UL1666 Riser
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6340FT

Part Number

Variants
Item #ColorUPCFootnote
5340FT 0011000Brown612825161110C
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.233 Revision Date: 08-22-2019
Date: 2006-02-01
