5324UL - Fire Alarm, #18-6c BC, FPLR


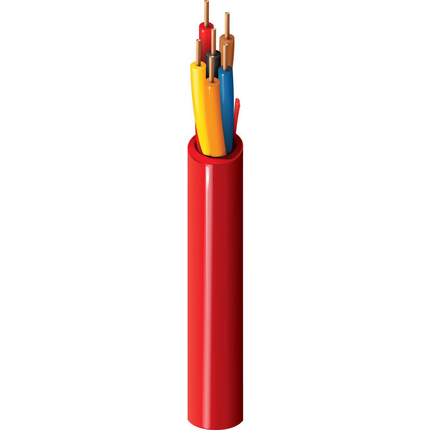

Fire Alarm Cable, Riser-FPLR, 6-18 AWG solid bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Monitor/Detection, Circuits: Audio, Control, Initiating, Notification

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
18SolidBC - Bare Copper6
Conductor Count: 6
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.007 in
Color Chart
NumberColor
1Black
2Red
3Brown
4Blue
5Orange
6Yellow
Outer Shield Material
MaterialDrainwire AWG
No Shield28
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.198 in0.017 inYes

Construction and Dimensions

Cabling
Twists
3.7 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
22 pF/ft
Current
Max. Recommended Current [A]
3.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 37 lbs/1000ft
Max. Pull Tension: 117.6 lbs
Min Bend Radius/Minor Axis: 2 in

Standards

NEC Articles: Article 760
NEC/(UL) Compliance: FPLR
Other Compliance: California State Fire Marshall

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Riser
CSA Flammability: FT4
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 6324UL

Part Number

Variants
Item #ColorUPC
5324UL 0021000Red612825160731
5324UL 002U1000Red612825160724
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.225 Revision Date: 06-24-2020
Date: 2005-04-01
No accessories are available for this product
