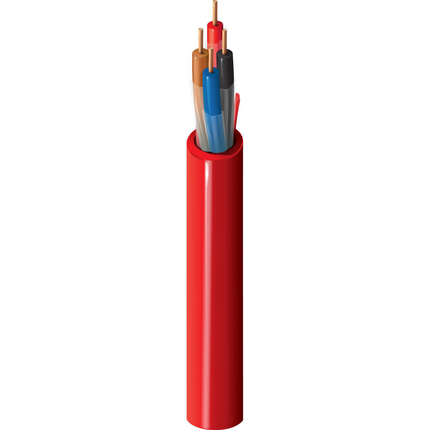

5322UN - Fire Alarm, #18-4c BC, NPLF


Fire Alarm Cable, Rated-NPLF, 4-18 AWG solid bare copper conductors with PVC/nylon insulation, PVC jacket with ripcord

Product Overview

Suitable Applications: Fire Alarm, Non-Power Limited, Circuits: Audio, Control, Initiating, Notification

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
18SolidBC - Bare Copper4
Conductor Count: 4
Insulation
MaterialNominal Wall Thickness
PVC/Nylon - Polyvinyl Chloride/Nylon Skin0.021 in
Color Chart
NumberColor
1Black
2Red
3Brown
4Blue
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessRipcord
PVC - Polyvinyl Chloride0.283 in0.042 inYes

Construction and Dimensions

Cabling
Twists
4 twist/ft

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
6.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor
22.5 pF/ft
Current
Max. Recommended Current [A]
4 Amps per conductor @ 25°C A
Voltage
UL Voltage Rating
150 V RMS

Temperature Range

UL Temp Rating: 75°C
Operating Temp Range: -20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 48.2 lbs/1000ft
Max Recommended Pulling Tension: 78.4 lbs
Min Bend Radius/Minor Axis: 2.75 in

Standards

NEC Articles: 760
NEC/(UL) Specification: NPLF

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-07-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 150 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
5322UN 002500Red612825160694

History

Update and Revision: Revision Number: 0.216 Revision Date: 04-28-2020
Date: 2005-07-01
